Injector Return Flow Test: Instructions, Values & Diagnosis

What Does an Injector Return Flow Test Measure?

Diesel injectors use high-pressure fuel to create precise injection events. Not all fuel entering the injector is injected into the cylinder. A controlled amount flows back through the leak-off or return line. This return fuel supports internal control, cooling, and pressure balancing.

A return flow test measures how much fuel each injector sends back into the return circuit within a defined test period. The aim is to compare the injectors with each other and identify abnormal internal leakage.

Why Return Flow Matters

If an injector returns too much fuel, this may indicate internal wear or a sealing fault. As a result, the available rail pressure can drop and combustion can be affected. If an injector has too little return flow, depending on the injector type and test conditions, this may indicate a restriction, sticking, or an internal control issue.

Excessive return flow can cause the following problems:

• Starting problems or long cranking
• Rail pressure too low during starting
• Rough idle and vibrations
• Loss of power under load
• Rail pressure fault codes
• Increased smoke and poor combustion

When Should an Injector Return Flow Test Be Performed?

A return flow test is especially useful when symptoms point to fuel pressure fluctuations or injector leakage. It should be considered when the vehicle shows the following signs:

• Starting problems: especially when warm or after a long period of standing
• Rough idle: shaking, uneven engine running, or cylinder imbalance
• Rail pressure faults: actual pressure lower than target pressure
• Heavy smoke: poor atomization or incomplete combustion
• Loss of power: especially during acceleration or under load
• Injector correction values outside the normal range: one or more cylinders require strong ECU corrections

The test is also useful after suspected fuel contamination, as water, dirt, or low-quality diesel can damage several injectors at the same time.

Tools Needed for a Diesel Injector Return Flow Test

Before starting, prepare the correct tools and observe all safety rules for high-pressure diesel systems.

• Injector return flow / leak-off test kit
• Graduated measuring bottles or measuring tubes
• Suitable adapters for the injector return connections
• Diagnostic tool for monitoring live data and rail pressure
• Basic hand tools
• Protective gloves and safety glasses
• Clean cloths and fuel-safe containers

Safety note: Never loosen high-pressure fuel lines while the engine is running. Common-rail systems operate at extremely high pressure and can cause serious injuries. During this test, work only on the low-pressure return side and always follow the manufacturer’s safety instructions.

Step-by-Step Method for the Injector Return Flow Test

Step 1: Bring the Engine to Operating Temperature If Possible

If the engine runs, it should be brought as close as possible to normal operating temperature. Some injector leaks only become visible when the fuel and components are warm. If the vehicle does not start, a controlled cranking test may be required instead.

Step 2: Save Fault Codes and Live Data

Before disconnecting anything, the vehicle should be scanned and the following information should be documented:

• Stored and pending fault codes
• Freeze-frame data
• Target and actual rail pressure
• Injector correction values or smooth running values

This information helps connect the return flow quantities with the actual vehicle symptoms.

Step 3: Disconnect the Injector Return Lines

Carefully remove the return connections from each injector. Make sure not to damage plastic connectors or seals. If a connector is brittle, cracked, or loose, it should be replaced to prevent later leaks.

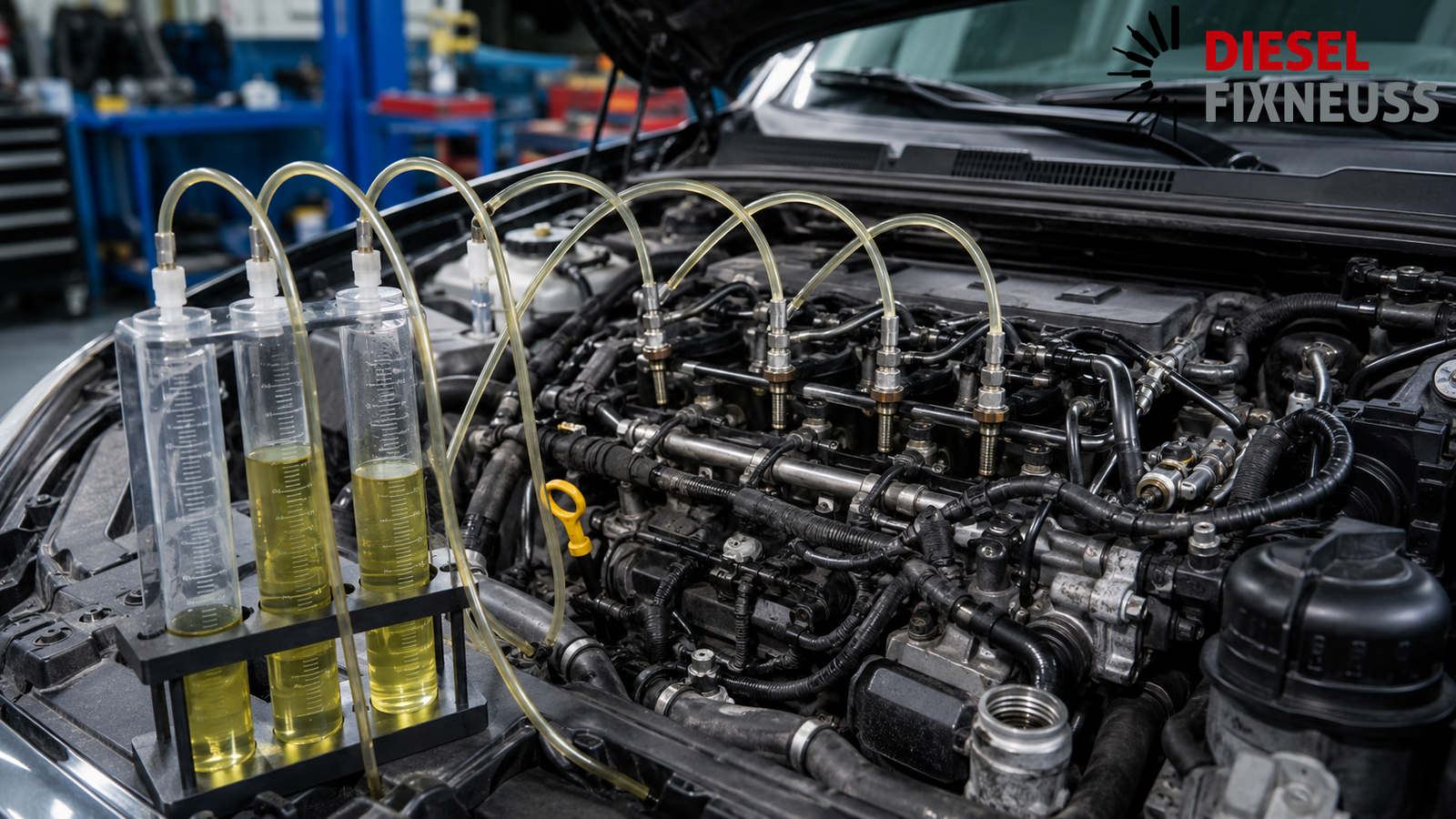

Step 4: Connect the Measuring Bottles

Connect the adapters of the leak-off test kit to the injector return connections and attach the hoses to equally sized measuring bottles or measuring tubes. Make sure all hoses are securely attached and correctly positioned.

Step 5: Perform the Test Under Controlled Conditions

Let the engine run at idle for the same duration on all injectors, usually for a few minutes depending on the manufacturer’s specifications and the test kit instructions. If the engine does not start, perform a controlled cranking test for a defined period.

For more accurate results, the test conditions should remain constant:

• Same test duration for all cylinders
• As stable an idle speed as possible
• No unnecessary electrical load or air conditioning load, unless the procedure requires it
• Document engine temperature and rail pressure during the test

Step 6: Compare the Fuel Quantity in Each Bottle

After the test, compare the return quantity of each injector. The decisive factor is not only the absolute quantity, but above all the difference between the individual cylinders.

Step 7: Repeat the Test If Results Are Borderline

If the results are unclear, the test should be repeated after further warming up the engine or under another defined condition. Some injectors only show excessive leakage when warm or under higher rail pressure demand.

How to Interpret the Results of the Injector Return Flow Test

The interpretation of return flow depends on engine type, injector type, rail pressure, test duration, and manufacturer specifications. However, there are some general patterns that are helpful for diagnosis.

Pattern of a Good Injector

A healthy injector set normally shows return quantities that are close to each other. Small differences are normal, but no single injector should be significantly higher or lower than the others.

• The return quantity is stable and similar across all cylinders
• No single bottle fills significantly faster than the others
• Rail pressure remains stable during the test
• Injector correction values are within a plausible range

Faulty Injector: Excessive Return Flow

If one injector returns significantly more fuel than the others, this usually indicates internal leakage. This injector may not be able to hold pressure correctly.

Possible effects include:

• Starting problems due to pressure loss
• Rail pressure too low during starting or acceleration
• Rough idle
• Reduced power under load

Several Injectors with High Return Flow

If several injectors show excessive return flow, the cause may be general injector wear, fuel contamination, water damage, or a system-wide problem. In this case, replacing only one injector may not solve the problem permanently.

Very Low or No Return Flow

Very low return flow can also be abnormal, depending on the injector design. It may indicate a restriction, internal sticking, or a problem in the return circuit. Always compare the results with the OEM specifications and the specific injector type.

Rail Pressure Remains Low, but Return Flow Appears Normal

If the injector return flow appears normal but rail pressure remains unstable, diagnosis should continue. Possible causes include:

• High-pressure pump wear
• Restricted fuel supply
• Faulty pressure control valve
• Problem with the fuel pressure sensor
• Clogged filter or air in the fuel system

Common Mistakes During the Return Flow Test

An incorrect test method can lead to wrong conclusions. Avoid these common mistakes:

• Test duration too short: small differences may not become visible.
• Wrong comparison between cold and warm results: leakage can change depending on temperature.
• Ignoring rail pressure live data: return flow and pressure must be evaluated together.
• Using damaged adapters or leaking hoses: this can cause incorrect measurements.
• Replacing parts based on one unclear test: borderline results should be repeated before making a final decision.
• Ignoring fuel contamination: if water or dirt was the cause, replacement injectors may fail again.

When Should a Single Injector Be Replaced and When Should a Complete Set Be Replaced?

When Replacing a Single Injector Can Make Sense

Replacing a single injector can make sense when the fault has been clearly isolated.

• Only one injector shows excessive return flow
• The other injectors are within specification
• The engine mileage is relatively low
• There is no evidence of fuel contamination
• The correction values of the other cylinders are stable

When a Complete Set Is the Better Choice

Replacing the complete set is often the safer solution when several injectors are affected by wear or when the vehicle has high mileage.

• Several injectors show high or uneven return quantities
• Fuel contamination has affected the system
• Correction values on several cylinders are close to the limits
• The vehicle repeatedly shows rough idle, smoke, or DPF problems
• One injector has already been replaced and a new imbalance appeared afterwards

Practical workshop tip: Use the test results to explain the decision clearly to the customer. A complete set does not simply mean “more parts”; it can help restore balanced combustion and prevent repeated complaints.

What Should Be Done After Replacing the Injectors?

After replacing the injectors, the job is not complete until the system has been checked.

• Install the injectors according to OEM specifications and with clean working practices
• Replace seals, copper washers, and return clips if necessary
• Enter injector codes / IMA / ISA values if the system requires coding
• Perform learning or adaptation procedures if required
• Check rail pressure stability after installation
• Recheck correction values and idle quality
• Make sure there are no fuel leaks or return line leaks

A short test drive with live data recording is strongly recommended, especially for Euro 6/VI vehicles with DPF and SCR systems.

How DieselFixNeuss Supports Accurate Injector Diagnosis

DieselFixNeuss supports workshops and vehicle owners with bench-tested, remanufactured diesel injectors designed to restore stable fuel delivery and balanced combustion. Since return flow problems often indicate internal injector wear, tested replacement injectors are essential for a reliable repair.

Why DieselFixNeuss is important for injector diagnosis:

• Bench-tested injectors: tested for flow and leakage behavior before shipping
• Support with fitment accuracy: verification by VIN or OEM part number to reduce compatibility risks
• System-level understanding: injector leakage affects rail pressure, idle quality, soot formation, DPF loading, and emissions stability
• 1-year warranty: added security for workshops and customers choosing remanufactured injector solutions

If your return flow test confirms injector wear, DieselFixNeuss can help you choose the correct single injector or a matched set for a lasting repair. Visit us here.

Conclusion

The injector return flow test is one of the most effective methods for diagnosing internal injector leakage in modern diesel engines. It helps technicians determine whether starting problems, rough idle, rail pressure fluctuations, smoke, or loss of power are caused by one faulty injector, several worn injectors, or another issue in the fuel system.

Accurate results depend on correct test conditions, careful comparison between cylinders, and proper interpretation of live data. If the test shows a clear outlier, replacing a single injector may be sufficient. If several injectors show wear or the vehicle has a history of contamination or high mileage, a complete set may be the better long-term repair solution. With bench-tested, remanufactured injectors from DieselFixNeuss, workshops can restore stable rail pressure, balanced combustion, and reliable Euro 6/VI performance.
