NOx-Sensor Installation and Calibration: Instructions for Workshops

by DieselFix Neuss 03 Nov 2025 0 Comments
NOx-Sensor Installation & Kalibrierung: Schritt-für-Schritt für Werkstätten

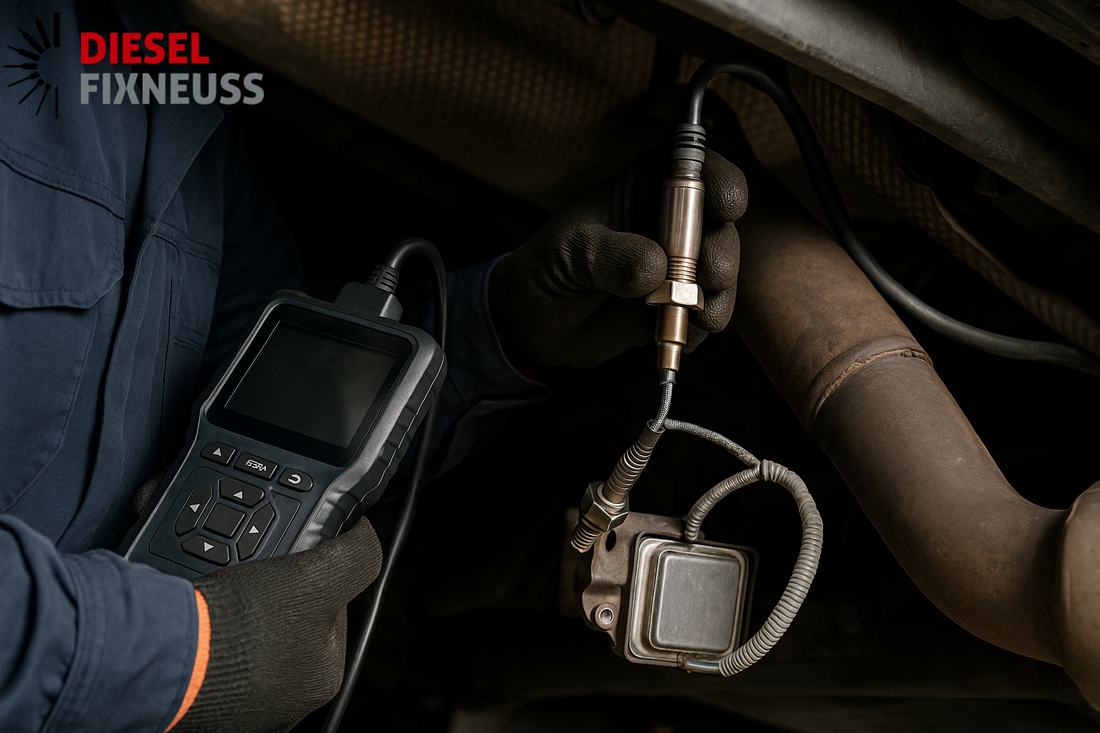

In this practical guide, professional technicians are led step by step through removing, installing, coding, and calibrating diesel NOx sensors on Euro 6 vehicles. The guide includes a complete tool list, essential safety notes, a clear sequence for removal and installation, detailed ECU adaptation instructions, and a test and drive cycle to reliably confirm the correct function of both the upstream and downstream sensors.

In addition, the guide offers practical tips for troubleshooting and documentation, enabling workshops not only to identify common sources of error more quickly but also to specifically avoid returns. Thanks to the structured approach, diagnostics can be carried out efficiently and transparently while precisely complying with OEM requirements—clearly improving safety and reducing downtime in the workshop.

NOx Sensor Installation: Tools & Safety

Required Tools

  • OBD-compatible diagnostic tester with UDS/OBD-over-CAN
  • NOx sensor socket or O2/NOx offset socket (high-temperature rated)
  • Torque wrench (OEM specification; typically 35–55 Nm—check per model)
  • Digital multimeter or clamp meter (to check the heater circuit)
  • High-temperature assembly paste (use only if approved by the OEM)
  • Removal tools, lamp, mirror, penetrating oil, retaining clips

Important Safety Measures

  • Allow the exhaust system to cool completely—surfaces can exceed 600 °C.
  • Wear gloves and safety glasses and use appropriate vehicle stands.
  • Disconnect the battery if required by the OEM; avoid short circuits in the heater circuit.
  • Ensure adequate ventilation in the workshop when the engine is running.

Pre-Checks & Preparation

  1. First, determine the sensor position: Is it the upstream sensor (before the SCR) or the downstream sensor (after the SCR)?
  2. Scan and save fault codes: Secure freeze-frame data; note heater circuit, range/performance, and communication faults.
  3. Inspect the exhaust tract: Check for leaks upstream of the sensor—these distort measurements.
  4. Check DEF quality: Poor AdBlue®/DEF quality can mimic NOx faults.
  5. Compare part numbers: Use only vehicle-specific sensors with the correct connector, cable length, and CAN IDs.

Removal of the Old NOx Sensor

  1. Let it cool down: Wait until the exhaust system is safe to touch.
  2. Release the wiring harness: Remove all retainers and heat shields.
  3. Disconnect the plug: Press the lock; never pull on the cable.
  4. Loosen the probe: If needed, apply penetrating oil; use a suitable offset socket.
  5. Remove the control unit (if separate): Unscrew the module from its bracket or frame.

Tip: If the sensor is seized, gently warm the threaded bung (not the cable!) and loosen carefully without twisting the harness.

Installation of the New NOx Sensor

  1. Clean the threaded bung: Remove rust and soot; chase the threads if necessary.
  2. Assembly paste (if allowed): Apply a thin layer to the threads only, not to the sensor tip.
  3. Screw in the probe by hand: Avoid cross-threading, then tighten to the OEM torque.
  4. Install the control unit: Mount in the original location to ensure proper cooling.
  5. Route the cable: Follow the OEM path, away from heat and moving areas; secure with clips.
  6. Connect the plug: Check the lock; reinstall heat shields and covers.

Electrical Checks & Connectors

  • Power & ground: Ignition on—check voltage and ground at the control unit.
  • Heater current: Measure inrush and steady-state current; compare with OEM setpoints.
  • CAN lines: Check for corrosion or bent pins; verify the integrity of the twisted pair.
  • Strain relief: Ensure the harness is secured but not under tension.

ECU Coding & Adaptation

After replacing the sensor, a service routine is usually required on many vehicles. Note that the naming may vary by diagnostic tool—for example “Basic setting,” “Teach-in,” “Reset NOx sensor,” or “SCR adaptation.”

  1. Clear fault codes after installation and wiring checks.
  2. Start the adaptation routine for the affected sensor (front or rear) according to the OEM specification.
  3. Bring the engine to operating temperature; check DEF tank level and temperature.
  4. Follow the prompts (hold idle, 2,000 rpm, light driving, etc.).

Note: If the routine fails, check heater current, power/ground, and CAN communication, then try again.

Calibration & Testing

The main goal is to confirm both plausible NOx values and correct SCR efficiency under known conditions.

Static Tests (Workshop)

  • Idle: Compare upstream/downstream sensors. After SCR activation, the value downstream of the SCR should be lower.
  • 2,000 rpm no load: Values should respond smoothly without spikes; heater current within spec.
  • Sensor temperature: Use live data to check whether the control unit maintains the target temperature.

Dynamic Tests (Road or Dyno)

  • Steady cruise: Downstream NOx should be significantly lower than upstream when dosing occurs.
  • Moderate load: Upstream NOx rises; downstream remains steadily controlled.
  • Overrun (decel fuel cut): Both values drop; verify smooth return afterwards.

Tip: Instead of focusing on single values, pay close attention to the trends of the NOx readings and the delta between the pre- and post-SCR sensors. Typically, unstable or flat-lined traces indicate issues in the harness, the heater, or the sensor.

Verification Drive Cycle

  1. Warm-up phase: 5–10 minutes of city driving with low load.
  2. Steady cruise: 10 minutes at 60–90 km/h; observe the reduction in downstream NOx values.
  3. Moderate accelerations: 3–4 times from 60 to 100 km/h; upstream rises, downstream remains stable.
  4. Idle check: After returning, observe idle values—stable with no fault codes.

Acceptance Criteria & Documentation

  • No active fault codes after the drive cycle.
  • between pre/post sensors during dosing (post-SCR < pre-SCR).
  • Stable heater current and no connector faults in live data.
  • Work record: First save the pre- and post-DTCs, then relevant live-data screenshots, and finally the installed part number—this ensures all steps are fully documented.

Common Sources of Error

  • Wrong position: Upstream and downstream sensors swapped.
  • Cross-threading: If the sensor is not started by hand, the thread can be damaged—causing leaks at the bung.

  • Excessive torque can cause ceramic fracture or seizing. It’s therefore essential to always follow the OEM torque specification.

  • Cable routed too close to heat zones: Contact with the DPF/SCR housing causes insulation damage.
  • Adaptation skipped: Sensor replaced but ECU routine not performed.
  • Ignoring an exhaust leak: Leaks upstream of the sensor distort values and SCR control.

Quick Troubleshooting

Symptom Probable Cause Action
Range/Performance fault (DTC) Sensor drift, exhaust leak, harness resistance Seal the exhaust; check heater current & ground; repeat adaptation
Heater circuit fault (DTC) Open/short, blown fuse, control unit fault Measure resistance/current; inspect wiring; verify supply voltage
No change in measured value (“flatline”) CAN communication fault, contact corrosion Check pins, clean contacts, verify CAN signal if necessary
Ammonia smell Over-dosing due to faulty upstream sensor Check upstream sensor readings; verify DEF quality & dosing injector

NOx Sensor Installation & Calibration: About DieselFixNeuss

DieselFixNeuss supports workshops across Europe, particularly with vehicle-specific NOx sensors, remanufactured injectors, and high-quality exhaust components. Every unit is thoroughly tested and quality-checked—on professional test benches and then shipped directly from our EU logistics centers. This ensures your workshop is reliably supplied. We also help you sustainably minimize downtime through practical installation, coding, and diagnostic tips, as well as especially fast delivery.

NOx Sensor Installation & Calibration: FAQ

Does the new NOx sensor need coding or teaching-in?

As a rule, yes for many Euro 6 vehicles. Therefore, you should definitely perform the OEM routine such as “basic setting” or “reset NOx sensor,” and then confirm the result with a test drive.

Can I use a universal sensor?

For this reason, we generally recommend vehicle-specific sensors, as they provide the correct pinout, suitable cable lengths, and necessary CAN compatibility. You should also always cross-check the OEM part number to avoid installation errors and compatibility issues.

What should I do if fault codes return after replacement?

First check the system for a possible exhaust leak, then check heater current and wiring connections. In addition, carefully verify DEF quality and dosing. If necessary, repeat the adaptation.

NOx Sensor Installation & Calibration: Conclusion

Accurate NOx measurement is crucial to ensure SCR efficiency, emission compliance, and fuel consumption. A structured approach is therefore essential: only through correct installation, careful ECU adaptation, and systematic verification can workshops promptly detect faults and effectively avoid returns. Furthermore, you should document all results, then verify stable readings, and finally return the vehicle to the customer with confidence.
